Structure of two-dimensional subbands on (111) Ge in MIS structures
Dolgopolov V. T. , Zhitenev N. B.

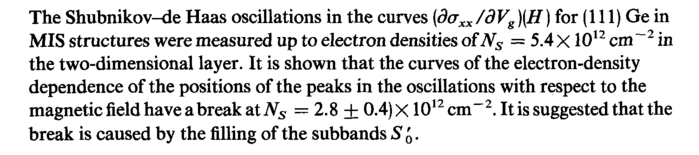

The Shubnikov-de Haas oscillations in the curves (daxx/dVg){H) for (111) Ge in MIS structures were measured up to electron densities of Ns = 5.4 Χ 1012 cm~2 in the two-dimensional layer. It is shown that the curves of the electron-density dependence of the positions of the peaks in the oscillations with respect to the magnetic field have a break at Ns = 2.8 + 0.4) χ 1012 cm"2. It is suggested that the break is caused by the filling of the subbands S '0.
